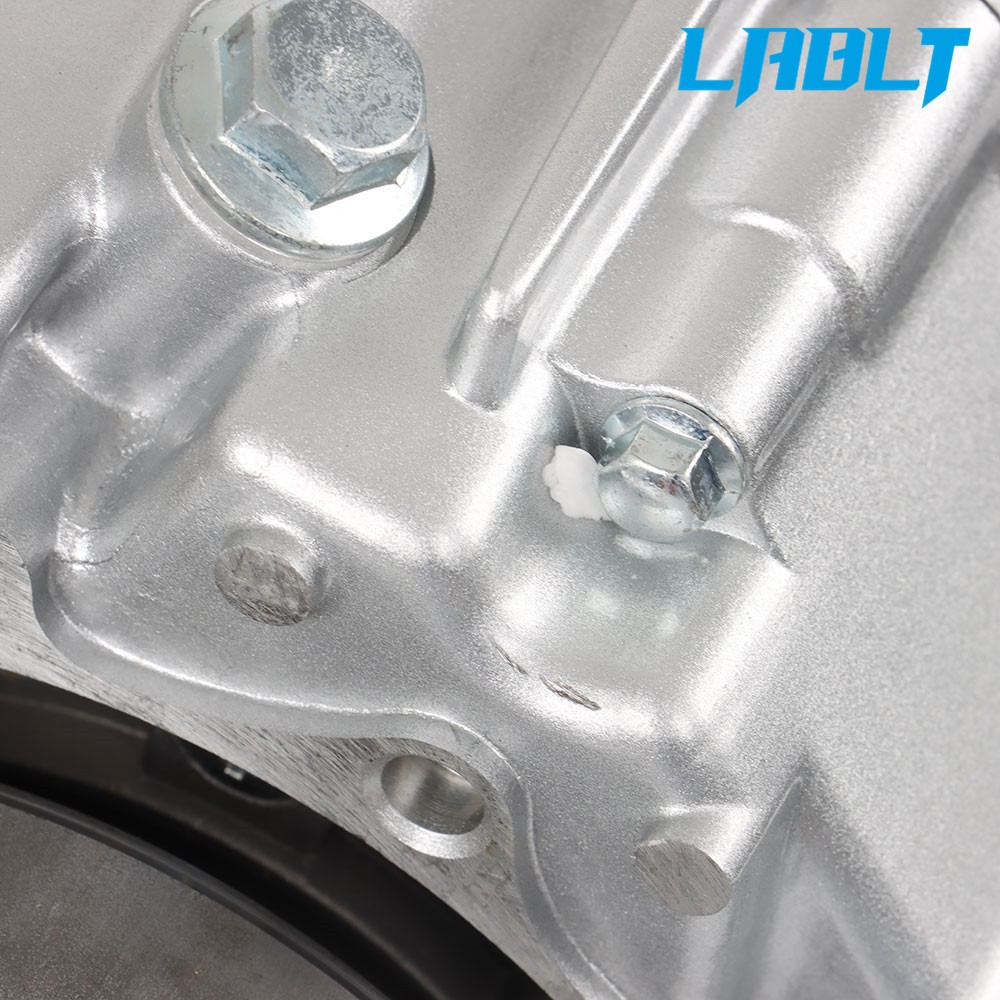

125cc 4-stroke Manual Clutch 4UP Engine Motor Dirt Pit Bike NEW
MotorcycleUSD $213.01
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Features:
- Type: 4-Stroke single-cylinder OHC air cooled
- Bore & Stroke: 54 X 54mm
- Compression ratio: 9.47:1
- Displacement: 123.7cc
- Max. HP: 8.72 HP @ 7,500 RPM
- Max. Torque: 8.0N.m @ 5,500 RPM
- Idle: 1,500 RPM
- Starter: Kick Start
- plug: A7TC or C6HSA
- Plug Gap: .28 or 0.6-0.8mm
- Ignition system: CDI (Capacitive Discharge Ignition)
- Lubrication: Pressure / Splash
- Oil capacity: 0.9L (15w/40-SE)
- Measurements: 18 1/4" x 11" x 11"
- Weight: 44.1/4 lbs (Engine only) Shipped 52lbs
- Clutch: manual clutch-wet
- Gears: 4 speed (primary reduction: 3.722 manual, 4.059 Auto)
- Gear Ratios: 2.833/1.706/1.238/0.958
- Magneto: Permanent magnetic
- Voltage: 12 V
- Sprocket: 428 15T 17mm
All machines do not carry oil
This engine has a three disc crank mounted heavy duty manual clutch. The head has a large domed combustion chamber with large valves. The intake valve is 27mm exhaust valve is 23mm.
This engine must be a neutral to start with a kick starter.
